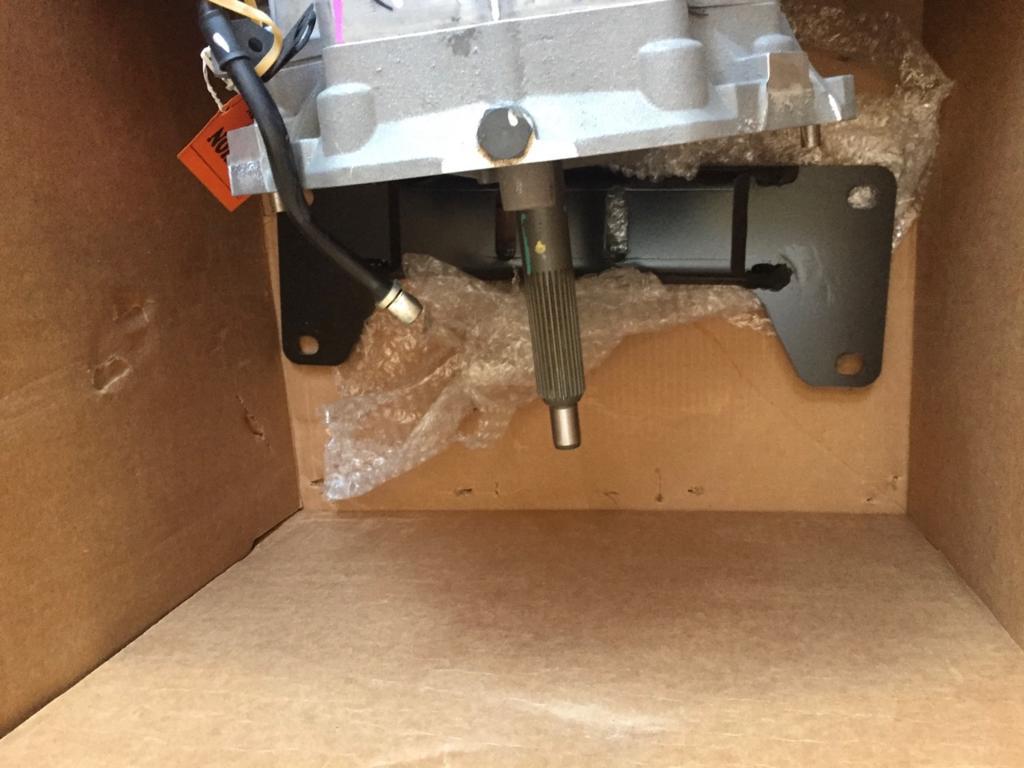

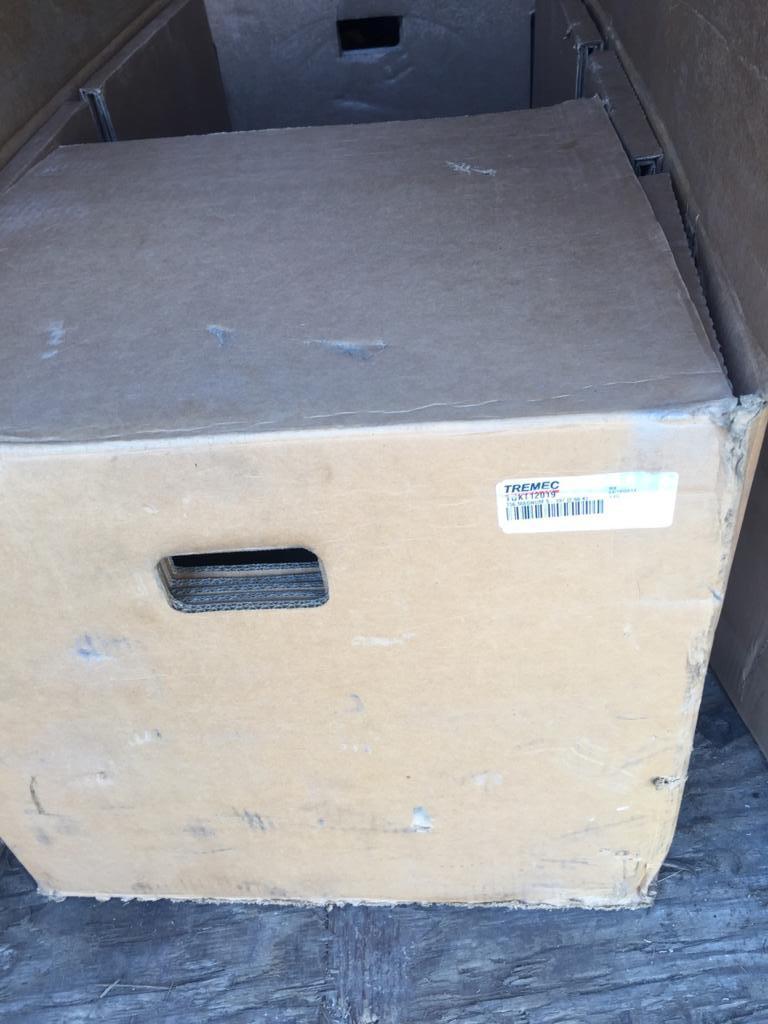

Brand new and boxed Tremec T56 Magnum XL 6 Speed manual close ratio gearbox

£2,500

Brand new and boxed Tremec T56 Magnum XL 6 Speed manual close ratio gearbox, purchased for a client, then changed his mind to go with an original 4 speed Muncie gearbox. This gearbox retails for £3,500 plus Vat, my price £2,500 plus VAT.

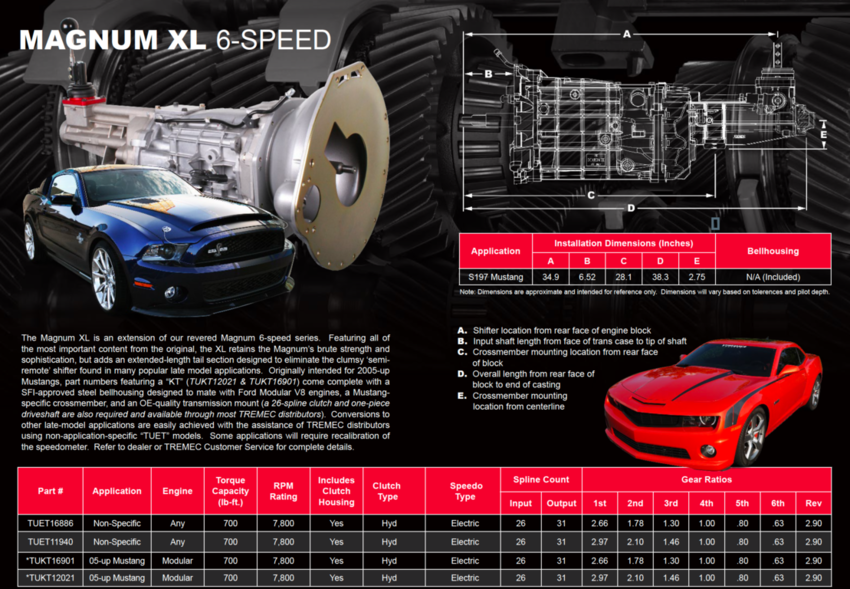

The Magnum XL is the next generation aftermarket T-56 6 speed manual transmission. It is based on the Factory OEM Tremec TR-6060 transmission used as original equipment in 2008 & up Mustang GT-500, Camaro, Corvette, Viper and Challenger.

This trans was designed to fit the 2005-2014 Mustang GT. If you purchase the full kit all you will need is a 26 spline clutch disc to complete the swap.

Features:

  • 700lb-ft Torque Capacity
  • SFI Steel Bellhousing
  • Electric Speedometer
  • 26 T Input Shaft Spline
  • 31 T Output Shaft Spline
  • Shifter and Knob
  • Cross Member
  • Wide Ratio 2.97/2.07/1.43/1.00/.80/.62 (1st thru 6th)
  • Close Ratio 2.66/1.78/1.30/1.00/.74/.50 (1st thru 6th)
  • Accepts Ford Production Hydraulic TOB
  • Fits Ford 4.6/5.0/5.4 MODULAR Engines
  • Install Kit available with Dynotech 3.5" Diameter 6061-T6 Aluminum Driveshaft
  • 2011-2014 Mustangs require (1) BM50 ERA for VSS calibration (+$149)
